Schwabenmax Quick action Throttle

Schwabenmax Quick action Throttle

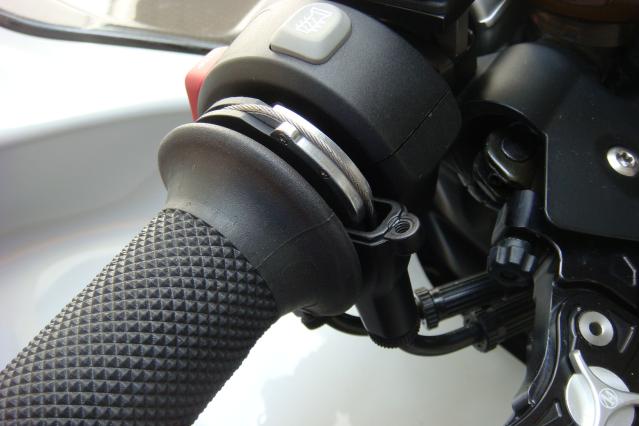

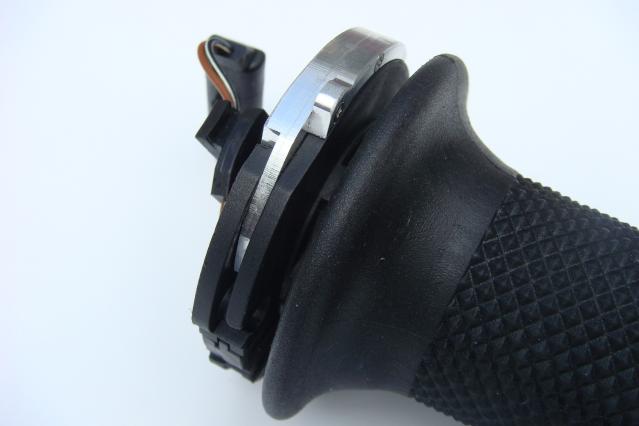

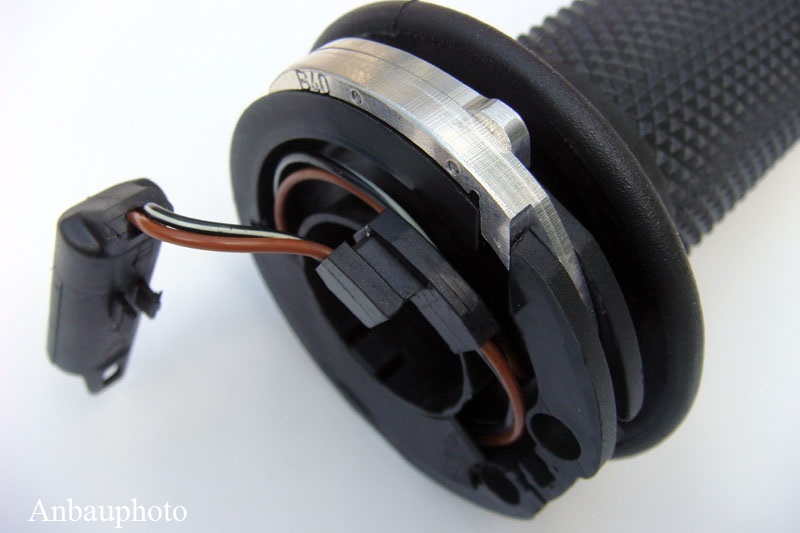

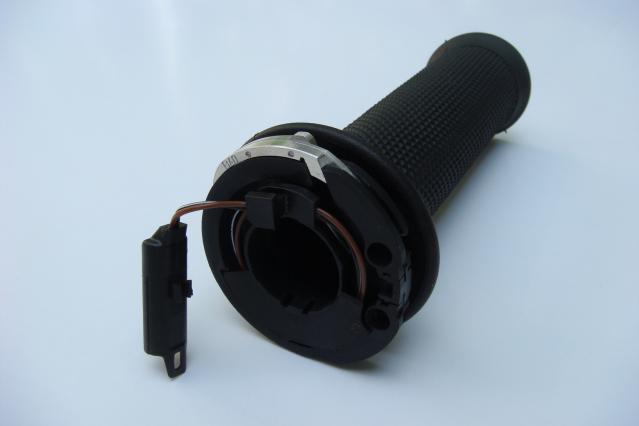

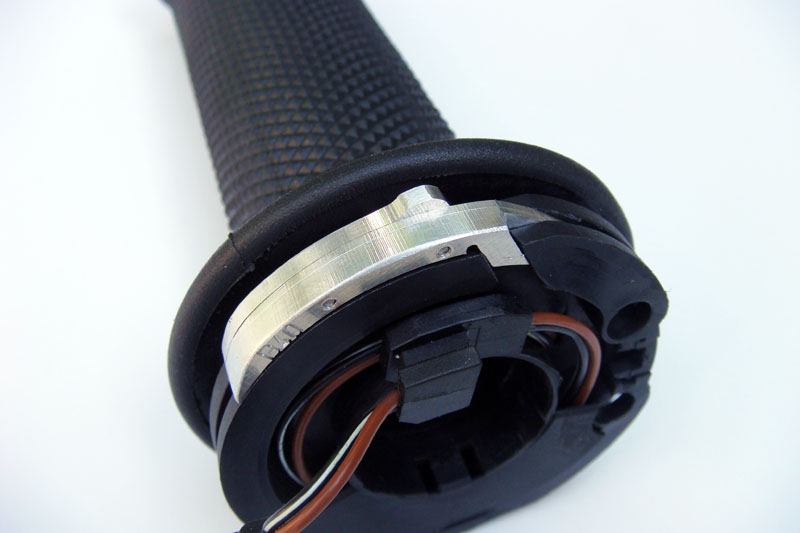

Motorcycle short-stroke throttle grip, for the good feeling in the right hand.

Schwabenmax Innovation

Short Stroke Gas Handle for Motorcycles

Short Stroke Throttle fit for F700, F800, S1000 and K1300 Models.

  1. Fit for Model:
  2. F700GS ab Bj. 2011-
  3. F800GS ab Bj .2013-
  4. F800GT ab Bj. 2013-
  5. F800R ab Bj. 2009
  6. R800R ab Bj. 2011-
  7. S1000RR bis Bj. 08.2011 (also fit at 09.2011 , if you use the grip from the Modell before)
  8. K1300R
  9. K1300S
Fit for Models without Cruisecontrol and without Drive by Wire Systems.

In the serial production of the aforementioned models it's impossible, to turn the gas handle from minimum to maximum position in one movement.

With our NEW INNOVATIVE PRODUCT you can turn the handle in one movement and guarantees full acceleration in an absolute safe performance on the road.

This product givcure feeling es your ride a more seon your bike and a better grip on the handle bar!

The hand gear from position "zero" to "maximum" is shortened about appr. 17,5%.

The new handling is more ergonomically and facilitates your wrist movement in a significant manner.

You can utilize this biomechanical benefit after a short time of accommodation

It has been tested extensively since Spring and Summer 2010 on client machines in different versions.

So we can offer you a permanently developed, high precision component and still more fun and safety on your bike!
The details made in a following table can differnet + /- 1mm. Serie Schwabenmax / short throttle
mode of action gashandle Linear 20 % Progressiv, 80 % Linear
angel of rotation without clearance 78 Grad 65 Grad
shortening of gas --------- 17,5 %
Gasweg 31,1 mm 31,1mm
Diameter / Radius Pulldisc 45,7 mm / 22,85 mm 54,7 mm / 27,35 mm
Pulldisc increase Radius
4,5mm
Material Plastic Aluminium CNC milled

  • Fits without changing the throttle and the throttle cables.
  • The throttle cover must be processed in accordance with our instructions.
  • Within EU there is a surcharge of 12 - possible that you send us your throttle for editing.

  • No TÜV registration required.
  • Utility and design patent.
  • Designed and manufactured in Germany.


Typ
Year
Throttle Edit
In Stock
:Deliverytime in Workdays , after receive the Payment: DE 2-3 Days, EU 3-4 Days, World 8-10 Days
Price
52,00 EUR
Quantity: Pieces
Garantie: 24 Monate


Deliverycontenr: Adapter adapter 3D CNC milled
